Configure a Webhook Endpoint

To receive webhook events from Revaly, you'll first need to create and configure a webhook endpoint. During setup, you'll select the events you want to receive, generate a signing secret for request verification, and validate that your endpoint can successfully accept and process webhook deliveries.

This guide walks through the setup process and outlines the recommended steps for preparing your integration for production use, including signature verification, event deduplication, and endpoint validation.

Create a Webhook Endpoint

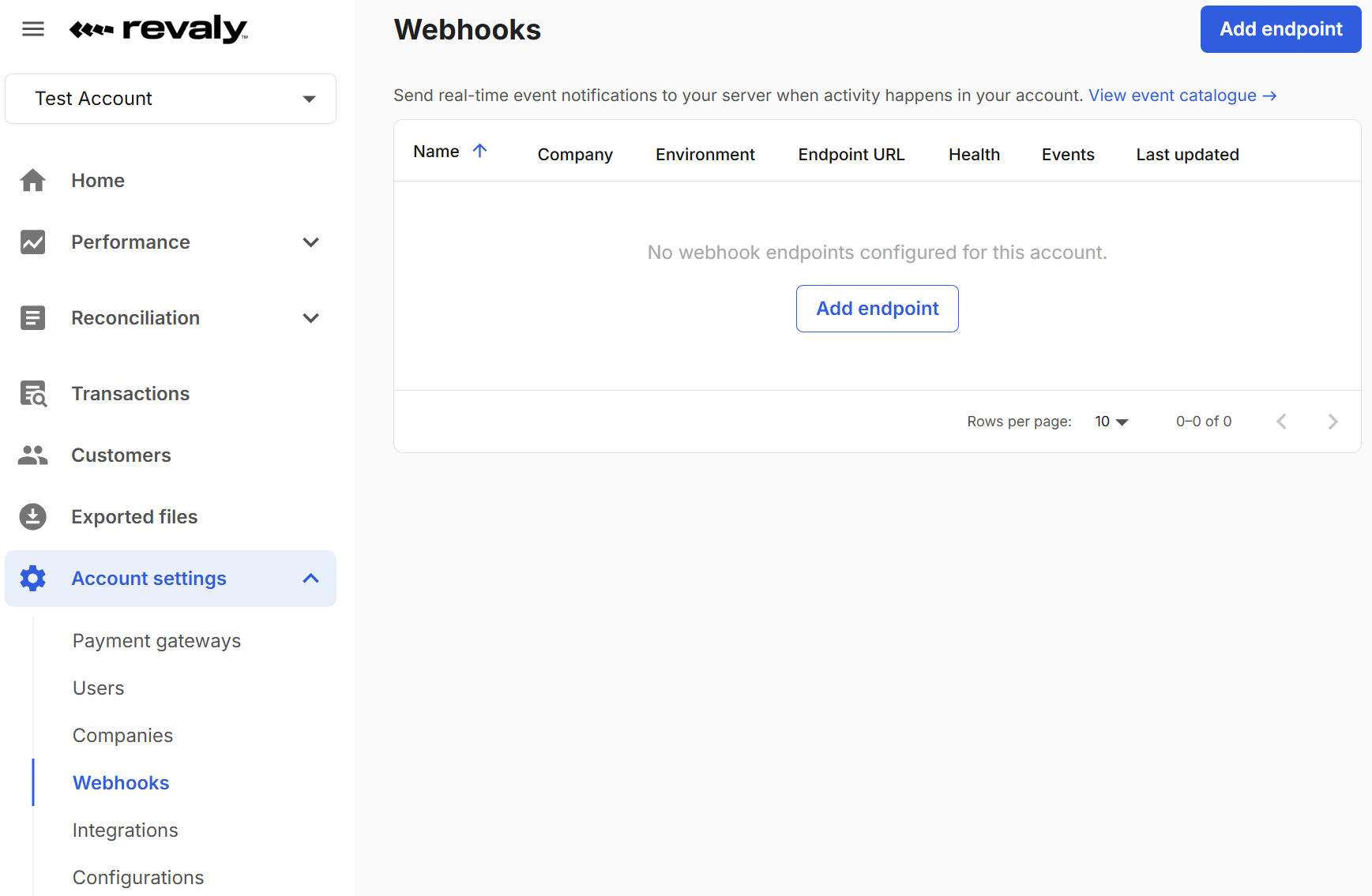

In the Revaly Portal, navigate to Account Settings → Webhooks

Click Add Endpoint and configure the endpoint:

Name: A label to identify this endpoint within your account.
Company: Events will be scoped to transactions belonging to this company.
Environment: Sandbox or Production
Endpoint URL: URL that will receive webhook events

❗️
HTTPS Requirement
Production endpoints must use HTTPS. Sandbox endpoints may use HTTP for local development and testing.
Status: Active or Disabled

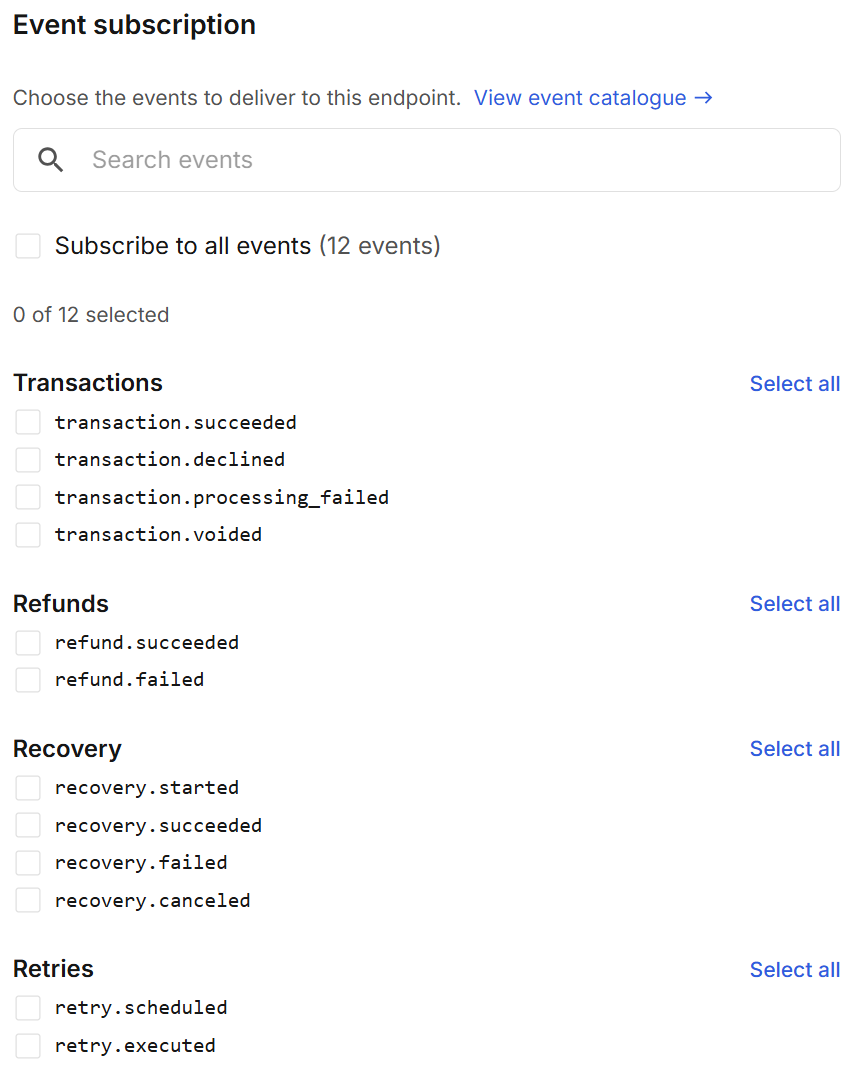

Event Types: Events you want to subscribe to.

Click Save endpoint.

Store Your Signing Secret

After creating the endpoint, Revaly generates a webhook signing secret. This secret is used to verify that incoming webhook deliveries originate from Revaly.

⚠️
Important
The signing secret is displayed only once. Store it immediately in a secure location

If the secret is lost or compromised, generate a new secret from the endpoint configuration page.

Implement Signature Verification

Before processing webhook events, your application should validate the Revaly-Signature header. Signature verification ensures that incoming requests originated from Revaly and that the payload has not been modified in transit.

Webhook signatures help protect against:

Forged requests
Payload tampering
Unauthorized event submissions

Detailed implementation examples are available in Verify Webhook Signatures.

Send a Test Event

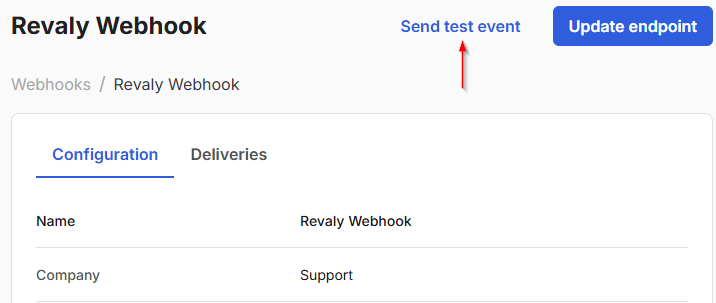

Once your endpoint has been configured, use the Send test event option to validate that your application can successfully receive and process webhook deliveries.

Choose one of the subscribed event types and send a test delivery.

Revaly generates a sample webhook event and delivers it to your endpoint using the same signature mechanism used for production traffic. Test events include "isTest": true so they can be safely distinguished from live activity.

After the delivery is completed, the portal displays the result, including the HTTP response status, response time, and delivery timestamp. Successful test deliveries help confirm that your endpoint is reachable, signature verification is configured correctly, and webhook processing is functioning as expected.

Verify Receipt

After sending a test event, confirm that your endpoint can successfully receive, validate, and process the webhook. A successful test should follow the same path that production events will use once the endpoint is live. Confirm that:

Your endpoint received the request
Signature verification succeeded
Your application processed the event successfully
Your endpoint returned a 2xx response
The event appears in your application logs

We recommend testing the event types your integration will use in production and validating multiple successful deliveries before enabling production traffic.

Go Live

Once testing is complete and your endpoint is consistently receiving and processing test events successfully, you're ready to begin receiving production webhook deliveries.

Before going live, confirm that:

The endpoint status is Active
Your production endpoint is reachable
Signature verification is enabled and functioning correctly
You can monitor deliveries through the Deliveries tab
Your endpoint is returning successful 2xx responses

Once these checks are complete, your integration is ready to receive production webhook events.
